Modern prefabricated steel structure factories with integrated office areas, combining functional production spaces and professional administrative zones. Custom designs, fast construction, and heavy-duty steel frames optimized for Middle East & Africa climates. Ideal for manufacturing, warehousing, and multi-purpose industrial use. Get a free quote today!
A Prefabricated Steel Structure Factory Building with Office Area refers to an integrated pre-engineered steel building system that combines industrial production space (factory) and administrative office space into a single structural assembly, characterized by off-site prefabrication of core components and on-site bolted assembly, which is widely applied in industrial construction fields.

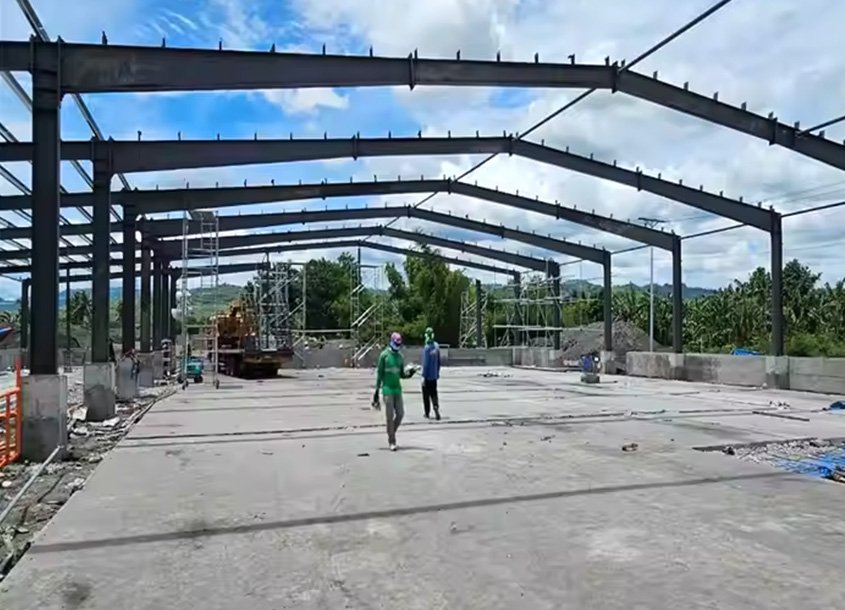

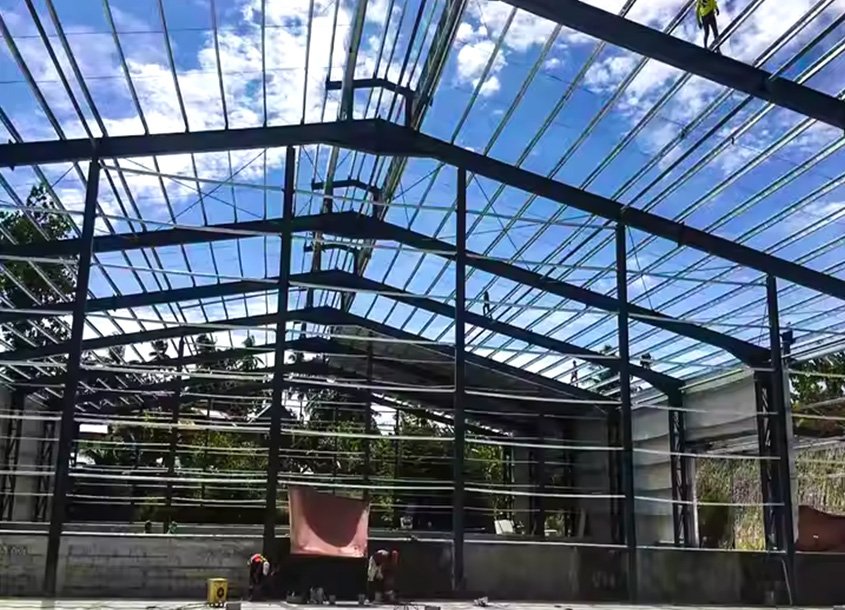

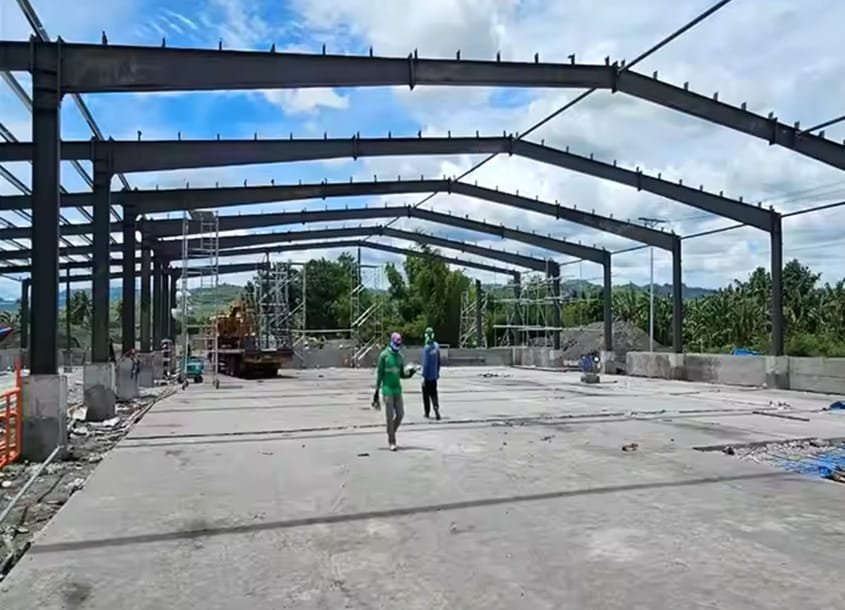

In terms of structural system, the product adopts a portal rigid frame structure as the main load-bearing system, with high-grade Q235B or Q355B carbon structural steel as the primary material for columns, beams, and purlins. The frame is designed to resist vertical loads (such as self-weight, snow load) and horizontal loads (such as wind load, seismic load), ensuring structural stability and integrity. The factory area typically adopts a large-span, column-free design with a clear span ranging from 18m to 60m, which meets the layout requirements of heavy equipment installation, production lines, and material storage.

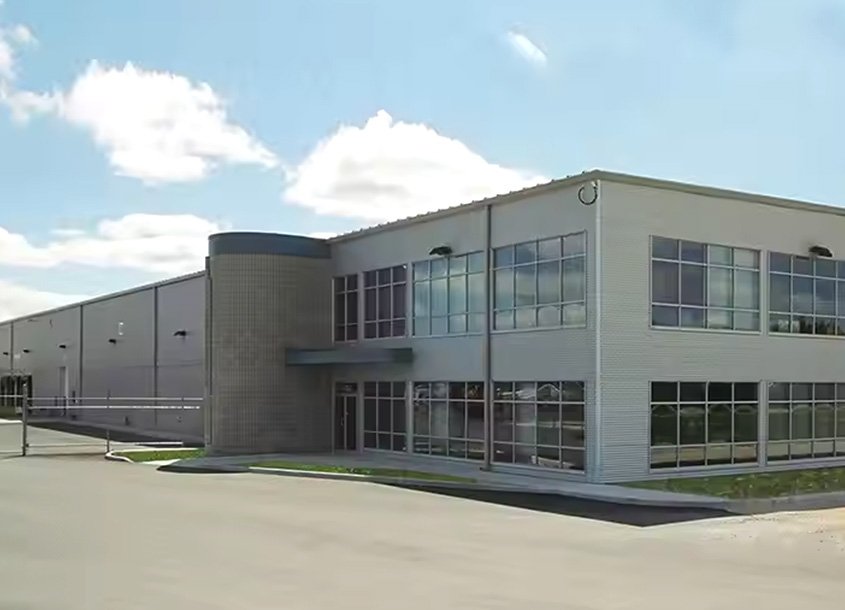

The office area is integrated with the factory structure as an attached wing or upper floor, adopting a light steel frame structure that is connected to the main factory frame through high-strength bolts to ensure structural continuity. The office section is equipped with thermal insulation and sound insulation layers, using EPS or rock wool sandwich panels as enclosure materials, which comply with building energy efficiency standards and provide a comfortable indoor working environment. The enclosure system of the entire building, including roof and wall cladding, mainly adopts color-coated steel sheets or insulated sandwich panels, with weatherproof sealing treatment at joints to enhance corrosion resistance and durability.
✅ Integrated Office & Workshop Design: Combines a clear-span industrial space with a dedicated office wing, streamlining operations and creating a professional corporate image.
✅ Clear-Span Open Layout: No internal support columns in the workshop section, maximizing usable floor space for production lines, heavy machinery, and storage.
✅ Modern Professional Aesthetics: The office section features large glass windows and a contemporary facade, creating a welcoming environment for clients and employees.
✅ Heavy-Duty Steel Structure: Built with high-grade Q235B/Q355B structural steel, offering exceptional load-bearing capacity, seismic resistance, and long-term durability.
✅ Fast & Cost-Effective Construction: Prefabricated components reduce on-site build time by 50-70%, minimizing labor costs and project delays compared to traditional concrete buildings.
✅ Climate-Adapted Construction: Optional insulated roof/wall panels, heat-reflective coatings, and corrosion-resistant finishes to withstand extreme heat, sandstorms, and coastal humidity.
Parameter | Details |
Primary Material | Hot-rolled structural steel Q235B / Q355B (GB/ISO certified) |
Frame Type | Heavy-duty portal steel frame, crane-ready design optional |
Roof & Wall Panels | Color steel corrugated sheets / Sandwich panels (EPS/PU/Rock wool insulation optional) |
Office Section Features | Large glass windows, multi-story design optional, professional facade cladding |
Workshop Clear Span Range | 15m-60m (customizable, no internal columns) |
Eave Height Range | 6m-20m (customizable for machinery clearance or overhead crane use) |
Wind Load Capacity | Up to 180km/h (customizable for local building codes) |
Snow Load Capacity | Up to 2.0kN/m² (customizable) |
Optional Features | Overhead cranes, roller shutter doors, ventilation systems, fire safety systems, office partitions, loading docks |
Certifications | ISO 9001, CE, BV, SGS, regional compliance (Saudi Aramco, UAE Civil Defense) |
Production Lead Time | 25-45 days (based on project size and customization) |
Installation Support | On-site engineering guidance, turnkey construction services, crane installation support |
· Manufacturing & Assembly Plants
· Industrial Workshops & Production Facilities
· Light Industrial & Commercial Buildings
· Logistics & Distribution Centers
· Multi-Use Industrial Buildings
· Corporate Industrial Parks & Facilities
Philippines, Indonesia, Malaysia, Thailand, Saudi Arabia, Iraq, Iran, United Arab Emirates (UAE), Qatar, Kuwait, Oman, Nigeria, Ghana, Egypt, South Africa, Angola, Algeria, Tanzania, Kenya, Ethiopia, Kazakhstan, Uzbekistan, Kyrgyzstan, Argentina, Peru, America, Canada etc.
1. Streamlined Operations: The combined workshop and office design eliminates the need for separate facilities, improving workflow efficiency and reducing operational costs.
2. Climate-Adapted Durability: Buildings are optimized for regional weather conditions, with heat-reflective roof panels, corrosion-resistant coatings, and optional ventilation systems.
3. Proven Regional Track Record: Successfully delivered 600+ steel factories with integrated offices across Saudi Arabia, UAE, Qatar, Nigeria, Kenya, and Ghana.
4. End-to-End Project Support: From initial design and engineering to manufacturing, shipping, installation guidance, and after-sales service, we manage every step of your project.
5. Cost-Effective Direct Factory Pricing: No middlemen markup, ensuring competitive pricing for high-quality steel buildings, with flexible payment terms.
